PT1000 VALVE EXERCISER / VALVE OPERATOR

STANDARD FEATURES:

  • Torque can be controlled from 0 to 850 ft. lbs.

  • AI system: controller is manual or Automatic.

  • Power head is mounted to a carriage that rides the full length of the track.

  • Exercise valves from 0' to 8' on a trailer or truck.

  • Pacific Tek locking system.

  • Telescoping 5' to 8' square aluminum key and 1-1/2" to 2" valve nut adapter.

  • Driven by a single hydraulic motor.

  • Double chain sprocket in head for strength

A truck, trailer, or skid mounted valve exerciser / valve operator for opening and closing underground valves. The PT1000 can operate underground valves from 4" - 60" diameter with adjustable torque range from 0 to 850 ft. / lbs. It has an operational horizontal reach of up to 8’ and a swing radius of up to 270 degrees. The unit can be mounted in various configurations, stowing width-wise or length-wise on a custom Pacific Tek trailer, flatbed service vehicle or dedicated single and tandem axle trailers. This unit can be powered from a separate hydraulic unit or vehicle driven one pump system.

PT1000 VALVE EXERCISERS / VALVE OPERATORS

  • PT1000: Slide Head Valve Exerciser / Valve Operator reaches 0-8' from base to head. This is for units mounted widthwise on trailers or trucks. Valve Exerciser / Valve Operator has 850 ft-lb of torque (No power pack). Data Collection Ready

  • PT1000-G: Slide Head Valve Exerciser / Valve Operator reaches up to 7' (depending on application). Valve Exerciser / Valve Operator has 850 ft-lb of torque, 14HP direct drive engine power pack. Data Collection Ready

  • PT1000-GT: Slide Head Valve Exerciser / Valve Operator reaches up to 7' (depending on application). Valve Exerciser / Valve Operator has 850 ft-lb of torque, 20HP direct drive engine power pack, selector valve, Class II hydraulic tool circuit, 19 gallon oil tank, oil cooler and retractable hose reel. Data Collection Ready

  • PT1000-D1: Slide Head Valve Exerciser / Valve Operator reaches up to 7' (depending on application). Valve Exerciser has 850 ft-lb of torque, hydraulic pump and electric switch engage clutch (no power pack - applied to D1 ready component). Data Collection Ready



PT1000 VALVE EXERCISER / VALVE OPERATOR: TRAILER & CARRIAGE

  • PT1000-G-T: PT1000 Slide Head Valve Exerciser / Valve Operator mounted on a custom trailer. 14hp gas engine direct drive Class II hydraulic pump. 19 gallon hydraulic reservoir. Single axle trailer and can swing out up to 8' from the base. 850 ft-lb of torque. Data Collection Ready

  • PT1000-GT-T: PT1000 Slide Head Valve Exerciser / Valve Operator mounted on a custom trailer. Single axle trailer and can swing out up to 8' from the base. 850 ft-lb of torque. 20HP direct drive power pack, Class II hydraulic tool circuit, selector valve, flat face connections, oil cooler, 19 gallon hydraulic reservoir, and in-and-out for hydraulic tools 850 ft-lb of torque. Data Collection Ready

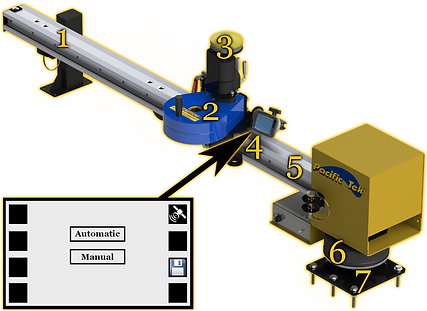

  1. Power Head Slide Track: The power head is mounted to a carriage that smoothly rides the full length of the track. A deck mounted stowage system is furnished to secure arms for travel.

  2. Power Head: The valve exerciser / valve operator power head is driven by a single hydraulic motor. Output torque can be controlled from 0 to 850 ft/lbs. Double chain drive provides more reliable long lasting operation.

  3. Global Positioning System (GPS) option: Instantly provides latitude, longitude, and altitude.

  4. AI Controller: Automatically and safely cycle through exercising and operating valves. Includes weather resistant, digital touch screen controller.

  5. Reach: Power Head travels up to 8' from mounting base to exercise and operate valves.

  6. Pacific Tek Position Locking System: Articulating arm is held in place with hydraulic Pacific Tek Locking System.

  7. Mounting Base: Mounting base is 1/2" thick square plate with a 1-1/2" pivot post for a swinger arm. A reinforced track is secured to the top of the swinger arm. Can be skid, truck, or trailer mounted.

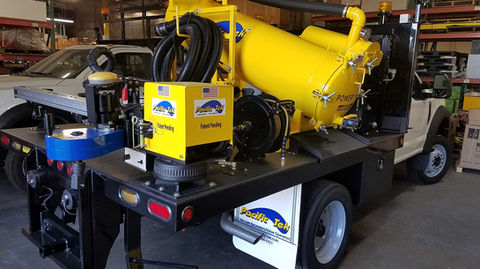

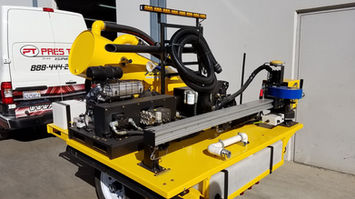

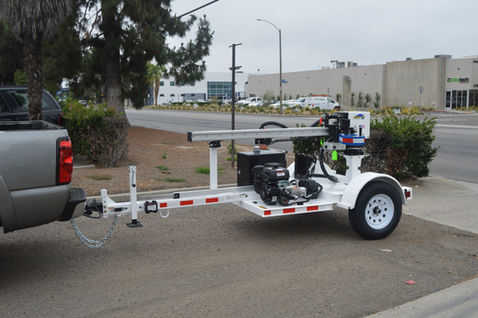

PT1000 VALVE EXERCISER / VALVE OPERATOR PHOTO GALLERY
